machines. One of our ready-for-purchase machines is the GKG G-TITAN
Solder Paste Printer. GKG G-TITAN Solder Paste Printing machine is
designed for high productivity operation requirements. This Solder
paste Printing Machine is capable of printing PCB sizes from 50 mm
x 50 mm to 510 mm x 510 mm with 0.4~6 mm board thickness.
As the trade is getting more and more involved in Industry 4.0, it
is understood that customers are also expecting to transform their
operations, yielding higher productivity and competitiveness.
Strategically armed with OPC (Optimum-Paste Control), G-Titan makes
your journey towards Lights-out manufacturing a seamless one.
Complemented with QPC (Quality-Print Control), G-Titan stands
firmly with the belief that nothing is more important than a good
print. These revolutionary changes of the fundamental aspects of
the SMT printer will bring about a kind of efficiency that you’ve
never had.

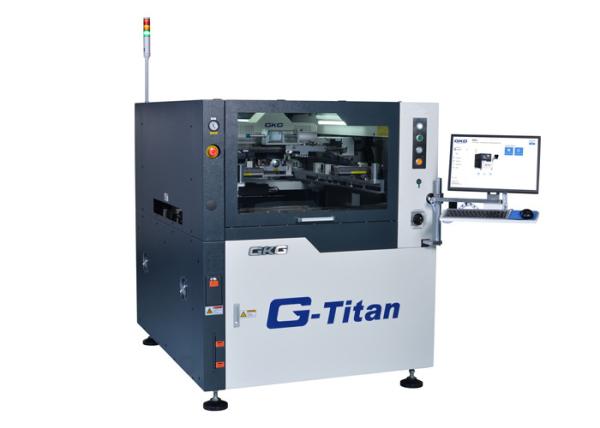

GKG G-TITAN Solder Paste Printer
STANDARD FEATURES & PERFORMANCE
Auto Paste Dispensing
The paste is automatically dispensed across the entire squeegee
length, maintaining at 15mm rolling diameter, adopting the common
500 grams’ solder paste jar. Completely eliminates the wastage of
solder paste overflowing to the sides of the squeegee.
Paste Rolling Diameter Monitoring System
Tracing solder paste rolling diameter in real-time and trigger the
auto-dispensing if it falls below 10mm. Completely eliminate
insufficient solder paste on the stencil and keep the paste rolling
speed within optimum range to achieve the best printing result with
this smt printer.
OPC Squeegee
Retainers at both sides can be adjusted to the exact length of the
PCB, enabling solder paste to be retained within the PCB length to
obtain a clean sweep. Possess absolute control over desired
printing area, to achieve the best printing quality using this smt
printer.
Stencil Aperture Inspection System
Using panel light installed at the top and CCD camera below to
inspect stencil apertures. It automatically detects the clogging of
stencil apertures to eliminate poor quality stencil being used,
ensure quality printing right from the start.
The Stencil Lock & PCB Clamper
The Stencil Lock sucks the stencil firmly on both sides of the
conveyor during the printing cycle. To eliminate stencil vibration
by having firm contact with PCB. The PCB clamper is a combination
of the retractable top clamp and motor-controlled side clamp,
uniquely designed by GKG (patented). With these standard features,
all of today’s available and challenging substrates can be securely
clamped and print to the highest quality.
TECHNICAL PARAMETERS
| PERFORMANCE |
| Machine Alignment Capability | 2 Cmk @ ± 10 microns 6 sigma |
| Process Alignment Capability | 2 Cpk @ ± 18 microns 6 sigma |
| Core Cycle Time | < 8.5 secs |
| (excluding printing & cleaning time) | |
| Product Changeover Time | < 3 mins |
| New Product Set-up Time | < 10 mins |
| BOARD HANDLING |
| Max. Size (L x W) | 510 mm x 510 mm |
| Min. Size (L x W) | 50 mm x 50 mm |
| Thickness | 0.4~6 mm |
| PCB Thickness Adjustment | Automatic |
| PCB Max. Weight | 5 kg |
| PCB Edge Clearance | 3 mm |
| PCB Bottom Clearance | 23 mm |
| PCB Warpage | Max. 1% diagonally |
| Clamping Method | Auto retractable top clamp, motor controlled side clamp |
| Support Method | Magnetic support pins, bars, blocks, vacuum suction |
| Conveyor Direction | L to R, R to L, R to R, L to L |
| (software control) |
| Conveyor Height | 900 ± 40 mm |
| Conveyor Speed | 1,500 mm/s |
| Conveyor Width Adjustment | Automatic |
| OPTICAL SYSTEM |
| Field-of-View (FOV) | 10mm x 8mm |
| Fiducial Types | Circle, triangle, square, diamond, cross |
| Fiducial Size | 0.5~4.0 mm |
| Vision Methodology | Digital CCD camera look up & down |
| 2D Inspection | Max.100 windows to inspect missing & insufficient (std.) |
| PRINTING PARAMETERS |
| Stencil Frame Size (L x W) | Adjustable, 470 mm x 370 mm to 737 mm x 737 mm |
| Print Gap (snap-off) | 0~20 mm |
| Printing Table Adjustment Range | X: ±10 mm, Y: ±10 mm: ± 2° |
| Print Speed | 10~200 mm/s |
| Squeegee Pressure | 0.5~10kg (program control) |
| Squeegee Type | Std.: OPC Squeegee 300 mm, 450 mm & Metal Squeegee 520mm. Option:
Rubber |
| Squeegee Angle | Std. 60°, Option 45°, 50°, 55° |
| Cleaning System | Auto wet, dry, vacuum (Software select) |
| FACILITIES REQUIREMENT |
| Power Supply | AC220V ± 10% 50/60Hz |
| Power Consumption | 3kW |
| Air Supply | 4 ~ 6Kgf/cm² |
| Air Consumption | 5L/min |
| Dimension (excluding signal tower) | 1,240 mm (L) x 1,560 mm (W) x 1,490 mm (H) |
| Machine Weight | 1,200kg |
| OPERATOR INTERFACE |
| Hardware | LCD Monitor, Mouse & Keyboard |
| Operating System (OS) | Windows 10 |
| Control Method | Industrial PC controlled |
| I/O Interface | SMEMA Standard |
| STANDARD FEATURES |
| Auto paste replenishment (OPC) |
| Paste rolling diameter monitoring system (OPC) |
| OPC squeegee assembly (2 pairs 300mm & 450mm) |
| Stencil Lock (QPC) |
| Stencil apertures inspection system (QPC) |
| OPTIONS |
| SPI closed-loop |
| Auto glue dispensing |
| Temperature, humidity monitoring & display with an aircon unit |
| Internal/External barcode scanner for PCB traceability |
| Handheld barcode scanner for stencil, solder paste, squeegee
traceability |
| MES system integration (For Ind. 4.0) |
| 2 machines in series for higher output |
| 2 machines back to back for dual lane SMT line |
